Underlays

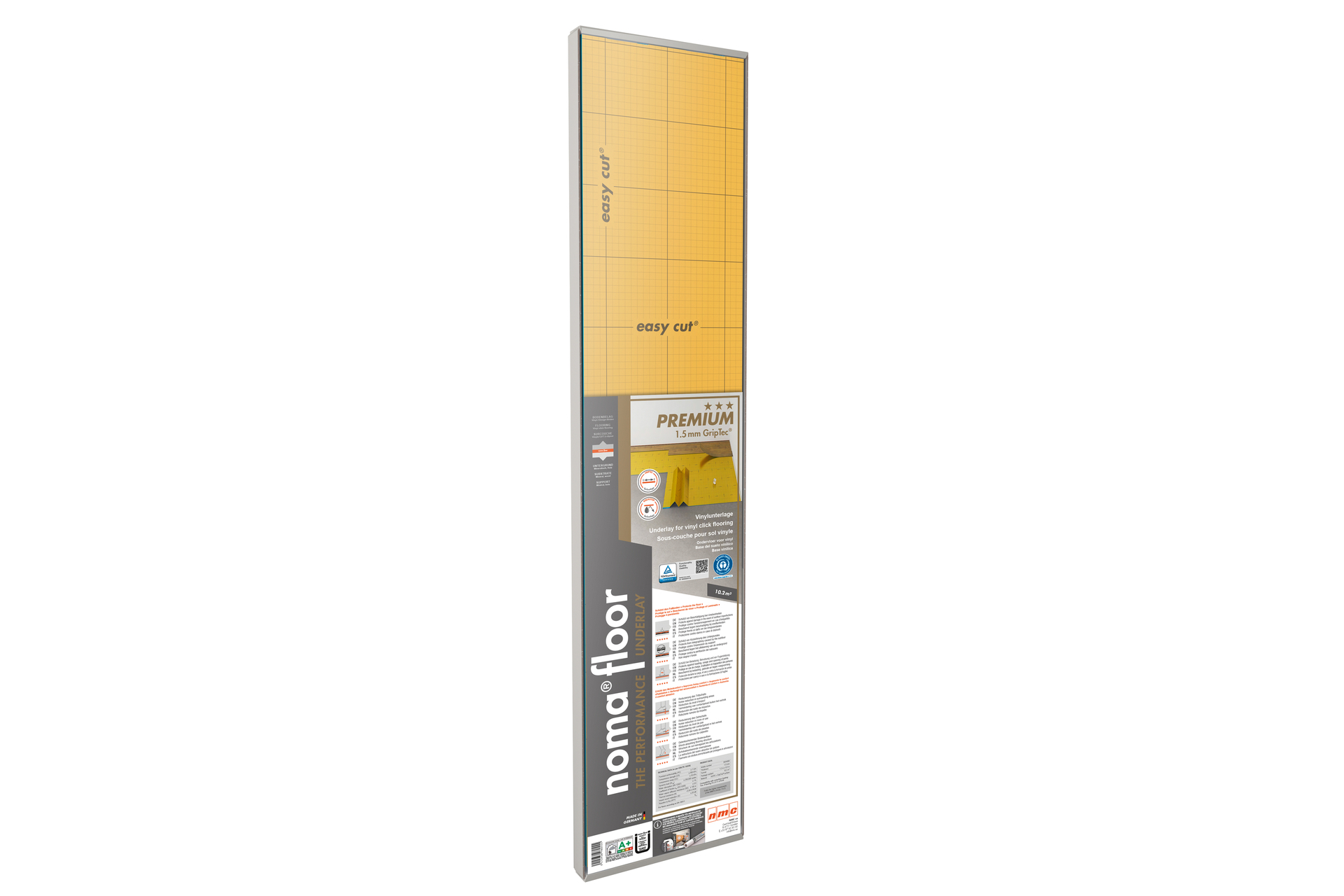

Premium 1.5 mm GripTec
- Floor type Vinyle
- Substrate Mineral & Wood
Description
NA
NA
- 1.5 mm strong, pressure-resistant polystyrene foam
- GripTec® anti-slip surface
- Vapour barrier
- easy cut® printed grid feature
General specifications
Protects the floor
Protection under demand (DL, CC, CS)
Prevent surface irregularities from appearing
Protects against damage caused by imperfections
Increases living comfort in the home
Impact Sound Insulation (IS)
Footstep sound insulation (rws)
Floor heating (Rʎ,B)
Increased walking comfort
Dimensions
Thickness 1,5 mm
Dimensions 1,2 m x 8,5 m
Detailed specifications
-
Punctual compensation capacity (PC)
- ≥ 1 mm
-
Water absorption (EN 12087)
- ≤ 1 %
-
Thermal resistance (R)
- ~ 0.04 m²K/W
-
Compressive stress (CS)
- ≥ 500 kPa
-
Permanent compressive stress (CC)
- ≥ 35 kPa
-
Dynamic constraint (DL25)
- ≥ 250000 cycles
-
Impact sound protection (IS)
- ≤ 20 db
-
Water vapor permeability (SD)
- ≥ 75 m
Product data
-
Article number
- 3034899
-
Thickness
- 1,5 mm
-
Dimensions
- 1,2 m x 8,5 m
-
Compatibility with underfloor heating
- 4
- Meets maximum MMFA requirements (Group 1 & 2)
