Underlays

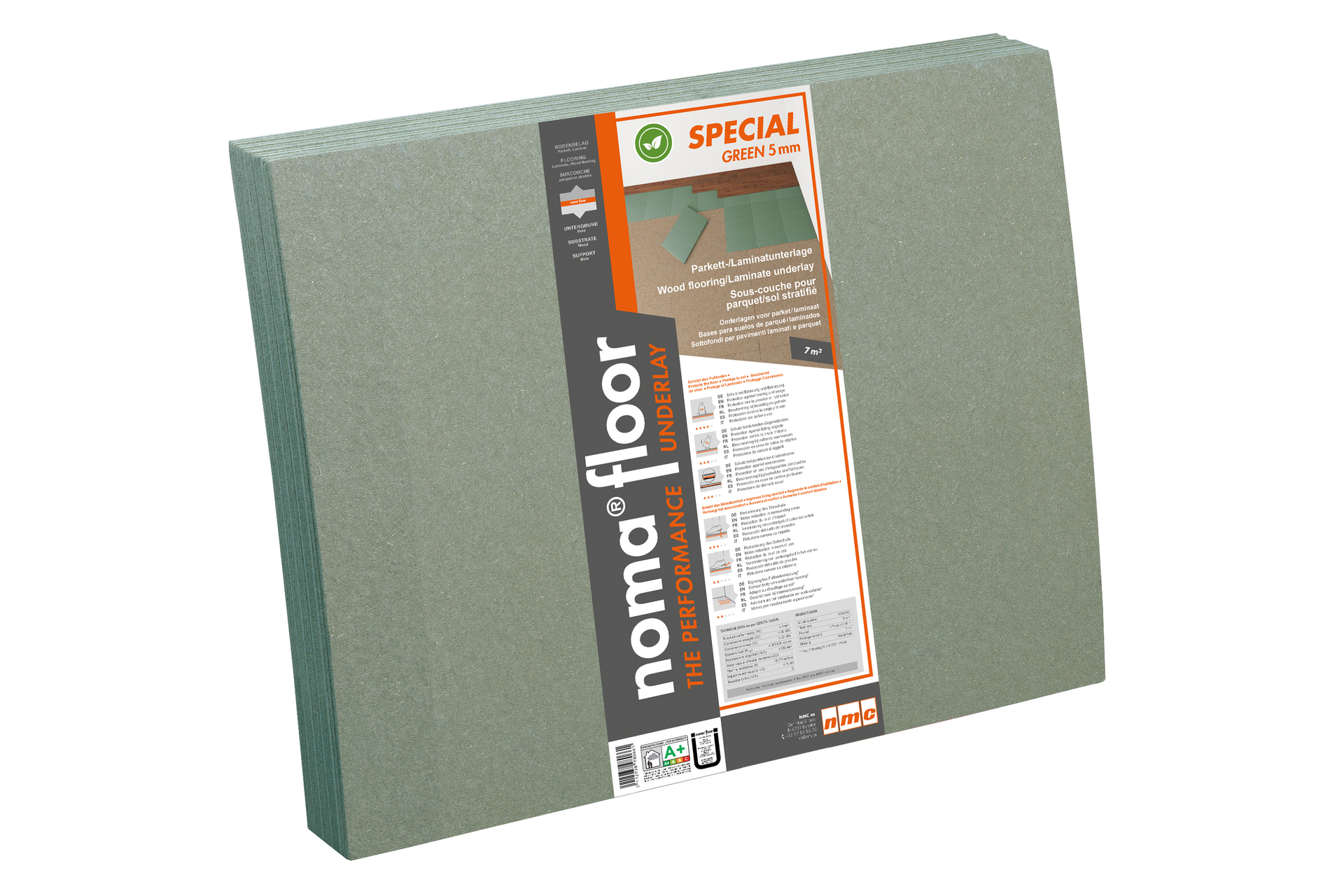

Special GREEN FIBER 5.0 mm
- Floor type Parquet / Laminate
- Substrate Wood
Description
- Ideal for use with pre-existing, level wooden substrates such as particleboard floors with isolated bumps of up to 1mm
- Very good compressive strength
- Made from renewable raw materials – for environmentally conscious renovations
General specifications
Protects the floor
Falling Object Protection (RLB)
Unevenness compensation (PC)
Protection under demand (DL, CC, CS)
Increases living comfort in the home
Impact Sound Insulation (IS)
Footstep sound insulation (rws)
Floor heating (Rʎ,B)
Dimensions
Thickness 5 mm
Dimensions 590 mm x 790 mm
Detailed specifications
-
Punctual compensation capacity (PC)
- ≥ 1 mm
-
Thermal resistance (R)
- ~ 0.08 m²K/W
-
Compressive stress (CS)
- ≥ 90 kPa
-
Permanent compressive stress (CC)
- ≥ 25 kPa
-
Dynamic constraint (DL25)
- ≥ 100000 cycles
-
Impact sound protection (IS)
- ≤ 19 db
-
Impact stress (RLB)
- ≥ 900 mm
Product data
-
Article number
- 3034912
-
Thickness
- 5 mm
-
Dimensions
- 590 mm x 790 mm
-
Compatibility with underfloor heating
- 2
- Meets minimum EPLF and MMFA requirements (Group 1)
