Underlays

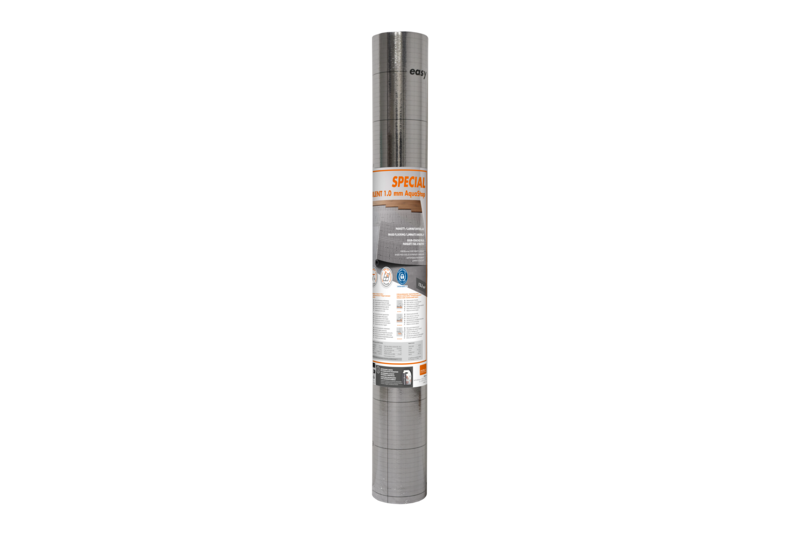

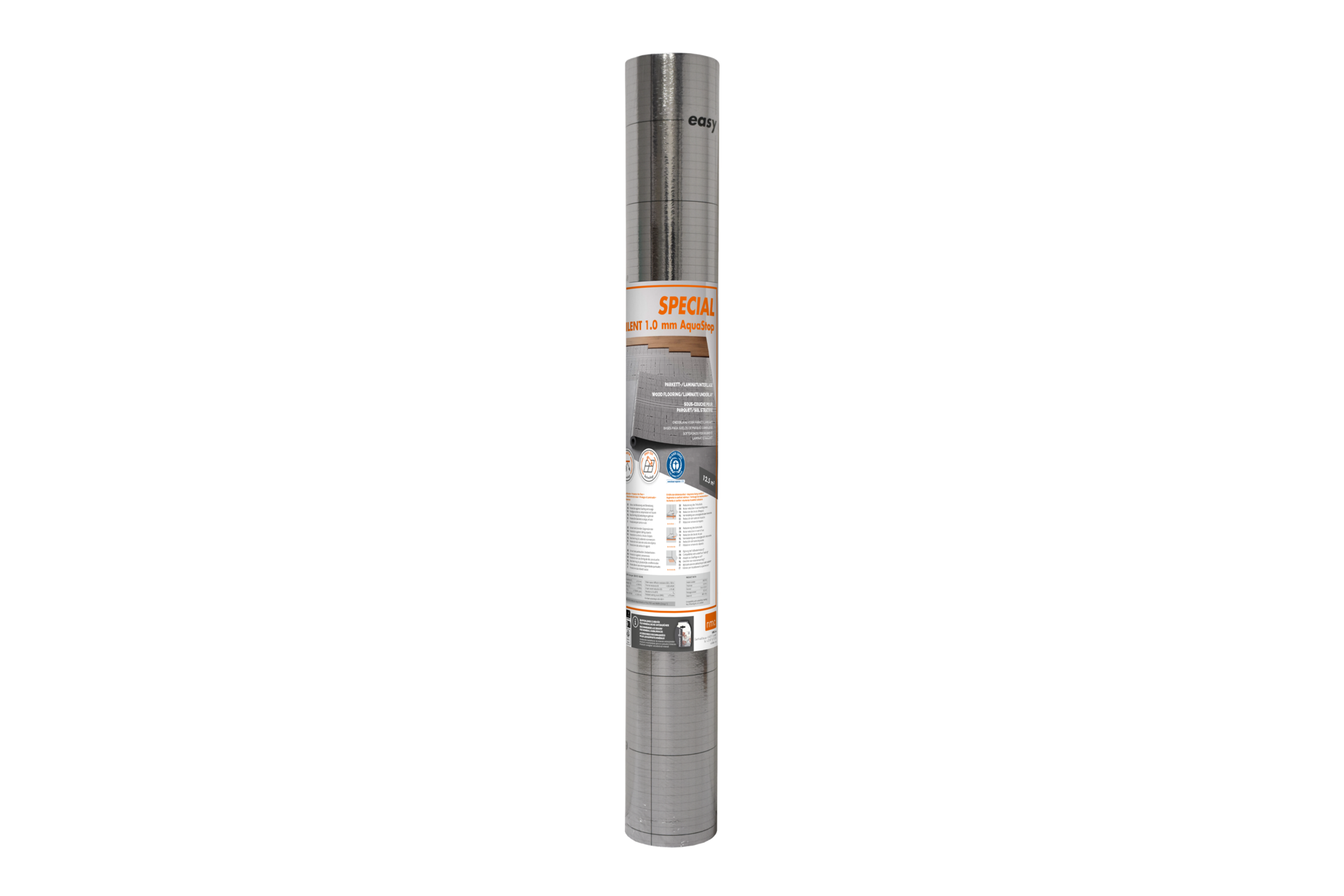

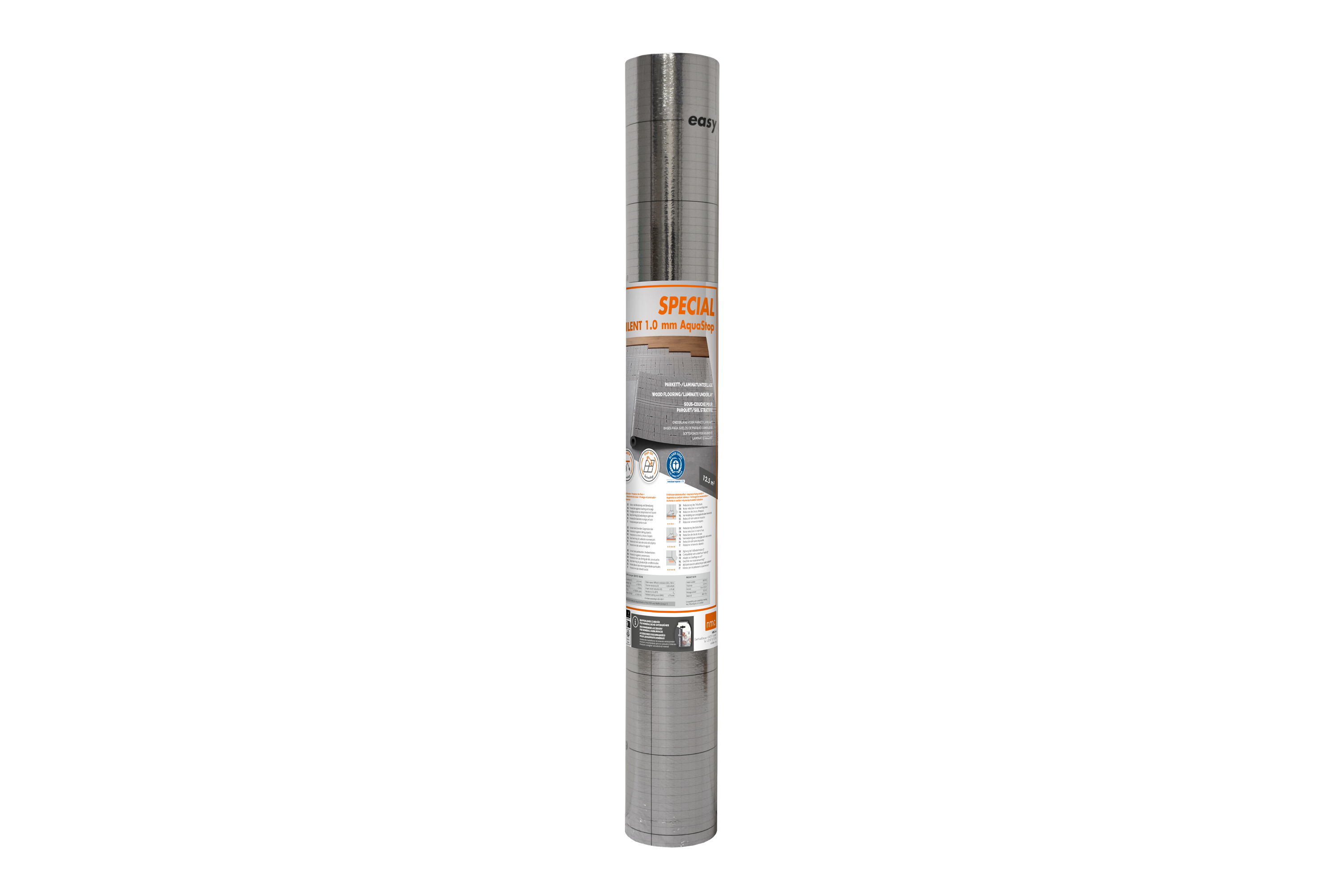

Special SILENT 1.0 mm AquaStop
- Floor type Parquet / Laminate
- Substrate Mineral
Description
- High compressive strength
- Suitable for underfloor heating
- Compensates for unevenness
- Effective impact sound reduction
- Water-repellent, moisture-resistant and fine-pored, closed-cell
General specifications
Protects the floor
Falling Object Protection (RLB)
Unevenness compensation (PC)
Protection under demand (DL, CC, CS)
Increases living comfort in the home
Impact Sound Insulation (IS)
Footstep sound insulation (rws)
Floor heating (Rʎ,B)
Dimensions
Thickness 1 mm
Dimensions 1 m x 12,5 m
Detailed specifications
-
Punctual compensation capacity (PC)
- ≥ 0.5 mm
-
Thermal resistance (R)
- ~ 0.03 m²K/W
-
Compressive stress (CS)
- ≥ 200 kPa
-
Permanent compressive stress (CC)
- ≥ 10 kPa
-
Dynamic constraint (DL25)
- ≥ 100000 cycles
-
Impact sound protection (IS)
- ≤ 19 db
-
Impact stress (RLB)
- ≥ 1250 mm
-
Water vapor permeability (SD)
- ≥ 100 m
Product data
-
Article number
- 3055718
-
Thickness
- 1 mm
-
Dimensions
- 1 m x 12,5 m
-
Compatibility with underfloor heating
- 5
- Meets minimum EPLF and MMFA requirements (Group 1)
