Underlays

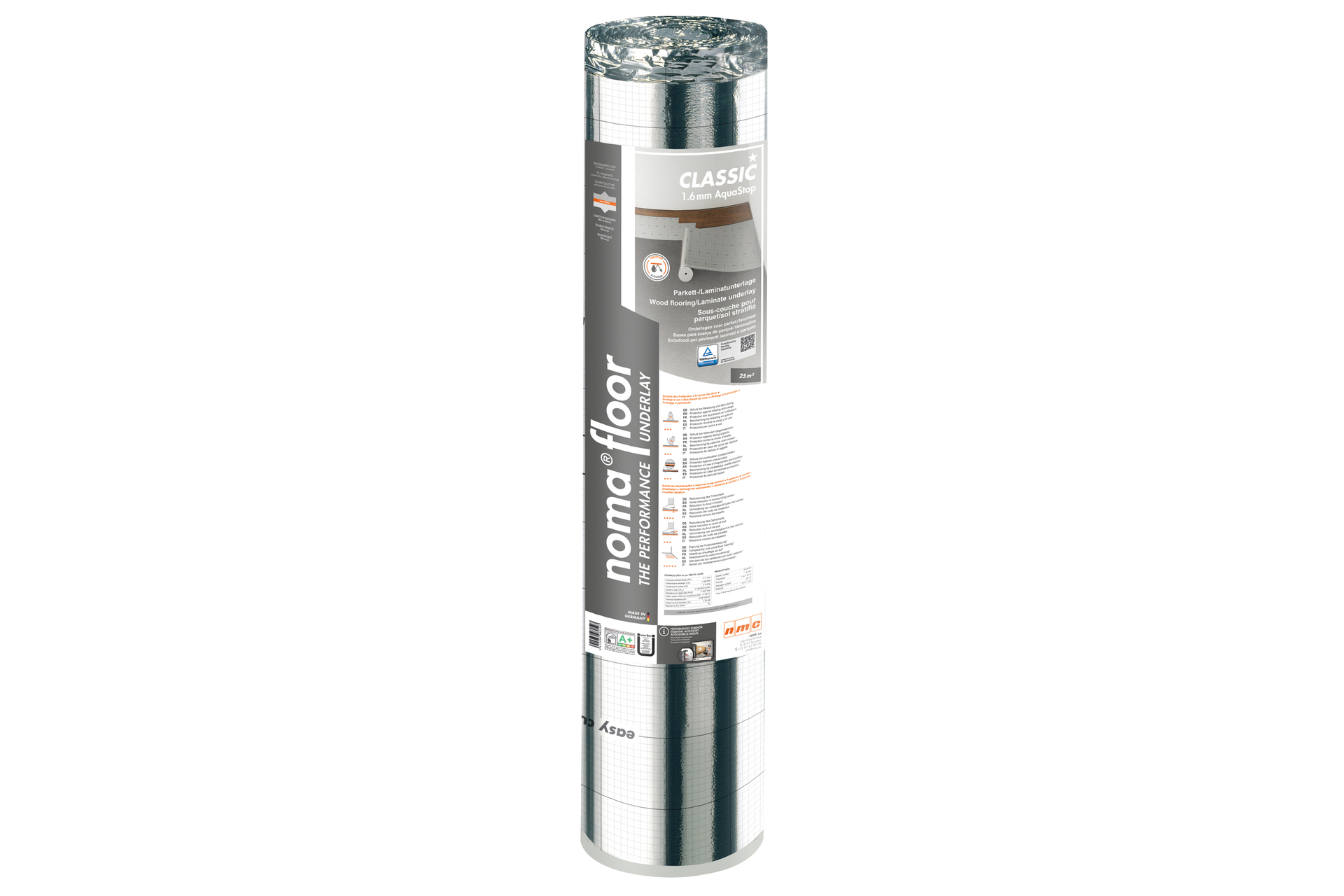

Classic 1.6 mm AquaStop
- Floor type Parquet / Laminate
- Substrate Mineral
General specifications
Protects the floor
Falling Object Protection (RLB)
Unevenness compensation (PC)
Protection under demand (DL, CC, CS)
Increases living comfort in the home
Impact Sound Insulation (IS)
Footstep sound insulation (rws)
Floor heating (Rʎ,B)
Dimensions
Thickness 1,6 mm
Dimensions 1 m x 25 m
Certificate
TÜV (nomafloor underlays)
Detailed specifications
-
Punctual compensation capacity (PC)
- ≥ 1 mm
-
Thermal resistance (R)
- ~ 0.06 m²K/W
-
Compressive stress (CS)
- ≥ 60 kPa
-
Permanent compressive stress (CC)
- ≥ 5 kPa
-
Dynamic constraint (DL25)
- ≥ 100000 cycles
-
Impact sound protection (IS)
- ≤ 20 db
-
Impact stress (RLB)
- ≥ 900 mm
-
Water vapor permeability (SD)
- ≥ 100 m
Product data
-
Article number
- 3034903
-
Thickness
- 1,6 mm
-
Dimensions
- 1 m x 25 m
-
Compatibility with underfloor heating
- 5
- Meets minimum EPLF and MMFA requirements (Group 1)
