Underlays

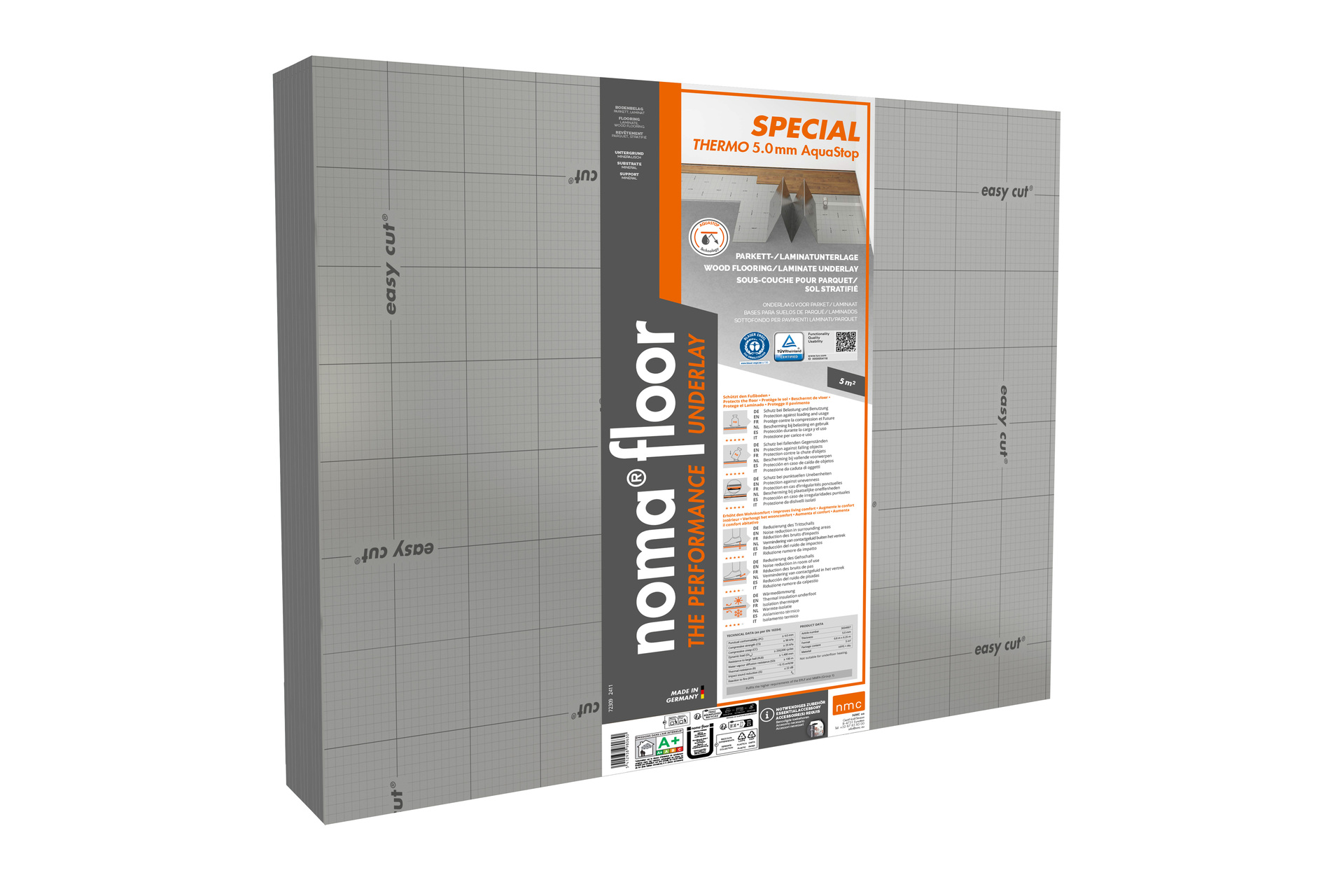

Special THERMO 5.0 mm AquaStop
- Floor type Parquet / Laminate
- Substrate Mineral
Description
- Thermal insulation for improved comfort on cold floors
- Reduction of walking/impact sound
- Smooths out isolated bumps up to 4 mm (PC value)
- High compressive strength, offering protection in areas of load and traffic
- Offers laminate floors reliable protection against falling objects
General specifications
Protects the floor
Falling Object Protection (RLB)
Unevenness compensation (PC)
Protection under demand (DL, CC, CS)
Increases living comfort in the home
Impact Sound Insulation (IS)
Footstep sound insulation (rws)
Thermal resistance (rʎ)
Dimensions
Thickness 5 mm
Dimensions 800 mm x 6,25 m
Detailed specifications
-
Punctual compensation capacity (PC)
- ≥ 4 mm
-
Thermal resistance (R)
- ~ 0.15 m²K/W
-
Compressive stress (CS)
- ≥ 90 kPa
-
Permanent compressive stress (CC)
- ≥ 25 kPa
-
Dynamic constraint (DL25)
- ≥ 250000 cycles
-
Impact sound protection (IS)
- ≤ 22 db
-
Impact stress (RLB)
- ≥ 1400 mm
-
Water vapor permeability (SD)
- ≥ 75 m
Product data
-
Article number
- 3034907
-
Thickness
- 5 mm
-
Dimensions
- 800 mm x 6,25 m
- Meets maximum EPLF and MMFA requirements (Group 1)
